Description
The JS JST-8 3″ 400v (code 011-008 3″) is a three-phase heavy duty submersible drainage pump for clean and dirty water. It delivers up to 380 litres per minute and a maximum head of 15 metres from a 0.75 kW motor, through a 3-inch outlet, on a 400v three-phase supply. This is the 3-inch version of the JST-8. JS publishes the same flow and head for both outlet sizes, so the 3-inch build suits sites standardised on 3-inch hose, or longer runs where a larger hose loses less to friction.
It is a manual pump, so it runs whenever power is applied. JS states that every JST model can be made to run automatically with a three-phase control panel and float switches; see our pump controls and float switches. In the same range, the JS JST-8 2″ is the same pump with a 2″ outlet, and the JS JST-15 is the next size up, also on a 3″ outlet, 500 l/min to 18 m.
Like every pump in the JST range, it has a stainless steel shaft and motor case, with a cast iron motor top cover, lower motor and seal housing, pump case, impeller and volute. Twin mechanical seals (carbon ceramic and silicon carbide) run in a lubricated chamber, and the pump comes with 10 metres of power cable. A hose tail is supplied for the outlet.
Features
- 0.75 kW motor, 400v three-phase
- Up to 380 l/min and 15 m head
- 3″ outlet, hose tail supplied
- Same performance as the 2″ JST-8
- Twin mechanical seals (carbon ceramic and silicon carbide) in a lubricated chamber
- Stainless steel shaft and motor case, cast iron pump case, impeller and volute
- Manual operation, can be automated with a control panel and floats
- 10 metres of power cable
- 24 kg, 420 x 190 x 280 mm (H x W x L)
Applications
- Trench, foundation and excavation dewatering
- Longer delivery runs on 3″ hose
- Flood clearance on sites with a 400v supply
- Plant hire fleets running 3″ hose
The JST range is for clean and dirty water containing small solids such as silt, sand and grit. It is not designed for raw sewage, rag or fibrous material, heavy slurry, oil or chemicals: for sewage on a 400v supply see the JST SV sewage vortex pumps, and for sand-laden water and slurry see the JST KB slurry pumps. It needs a 400v three-phase supply and, like any standard submersible, stops drawing once the water falls below the intake.

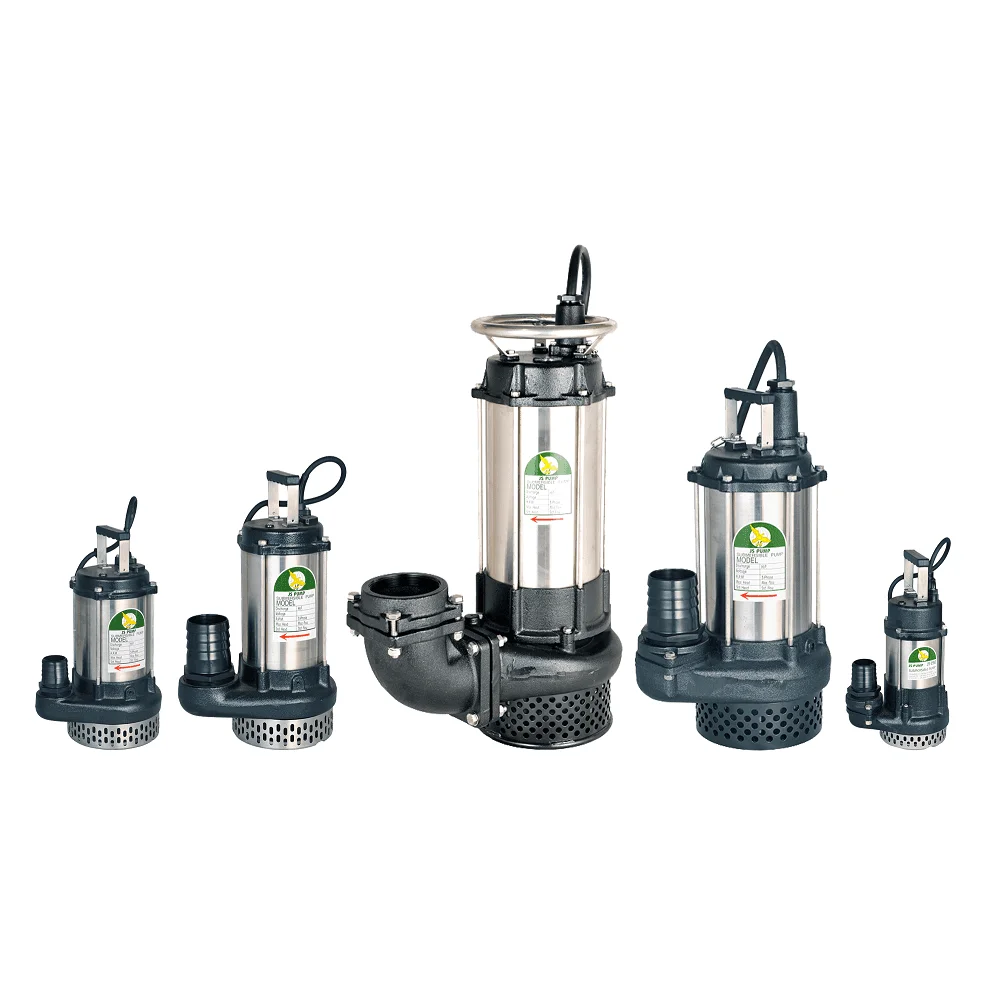

The JS JST and JST-H 400v range
| Model | Type | Outlet | Max Flow (l/min) | Max Head (m) | Motor (kW) | H x W x L (mm) | Kg | Code |
|---|---|---|---|---|---|---|---|---|
| JST-4 | Standard | 2″ | 240 | 12 | 0.4 | 370 x 145 x 220 | 14 | 011-004 |
| JST-8 2″ | Standard | 2″ | 380 | 15 | 0.75 | 420 x 190 x 260 | 24 | 011-008 2″ |
| JST-8 3″ | Standard | 3″ | 380 | 15 | 0.75 | 420 x 190 x 280 | 24 | 011-008 3″ |
| JST-15 | Standard | 3″ | 500 | 18 | 1.5 | 440 x 190 x 280 | 28 | 011-015 |
| JST-22 | Standard | 3″ | 850 | 20 | 2.2 | 510 x 220 x 315 | 39 | 011-022 |
| JST-37 | Standard | 4″ | 1,300 | 24 | 3.7 | 525 x 220 x 320 | 44 | 011-037 |
| JST-55 | Standard | 4″ | 1,800 | 22 | 5.5 | 640 x 280 x 500 | 66 | 011-055 |
| JST-75 | Standard | 6″ | 2,000 | 31 | 7.5 | 720 x 280 x 500 | 76 | 011-075 |
| JST-15H | High head | 2″ | 450 | 23 | 1.5 | 420 x 190 x 250 | 27 | 011-019 |
| JST-22H | High head | 2″ | 650 | 30 | 2.2 | 510 x 220 x 315 | 40 | 011-023 |
| JST-37H | High head | 2″ | 850 | 35 | 3.7 | 525 x 220 x 320 | 45 | 011-039 |
| JST-55H | High head | 3″ | 1,050 | 32 | 5.5 | 640 x 280 x 500 | 66 | 011-057 |
| JST-75H | High head | 4″ | 1,600 | 40 | 7.5 | 720 x 280 x 500 | 76 | 011-077 |
Flow and head are JS Pumps’ published maximums. For a single-phase 110v or 230v pump of the same type, see the JS Heavy Duty Contractor range. See the JS JST and JST-H range page for help choosing between models and answers to common questions.
