Booster Pumps

Booster pumps raise water pressure and flow where the supply is too weak for showers, taps, washing points or upper floors. We supply automatic water pressure pumps for houses, flats, site welfare cabins and commercial buildings, fed from a storage or break tank.

Start with our guide on how to choose the right booster pump, or send us your flow and pressure figures and we will recommend a unit.

Show Filter
Categories
Product brands
Price Range
Voltage
Flow Rate
Max Head
Material
Liquid Type

Showing all 6 results

How to choose a water booster pump

A booster pump has to deliver enough flow for the outlets that run at the same time, at a useful pressure at the highest outlet. Measure first: our guide to testing water pressure and flow rate shows how. Then check:

  • Peak demand: one shower and a basin need far less than several bathrooms or a row of washroom taps running together.
  • Height: every 10 metres of rise costs about 1 bar, so upper floors need more pressure from the pump.
  • Water source: a cold water storage tank, a break tank or a rainwater tank. See the regulations below before drawing from the mains.
  • Water quality: clean water only, as sand and grit cause wear.
  • Power: 230v for buildings, 110v for welfare units on construction sites.

The water regulations: notification, not consent

Under the Water Supply (Water Fittings) Regulations 1999, a pump that draws more than 12 litres per minute directly from the mains requires notification to your water supplier. It is a notification, not an application for consent. The usual compliant set-up is a break tank: the mains fills the tank through a float valve with an air gap, and the pump draws from the tank, so it cannot pull water from the public supply or let water back into it.

Booster pumps we stock

The Pentax PM45-A booster pumps with automatic control suit one outlet or a few used one at a time, such as a tank-fed shower or washing point. A pre-wired Presscontrol starts the pump when a tap opens, stops it a few seconds after it closes and shuts it down if the water supply runs out. It gives up to 40 litres per minute and 40 metres of head, in 230v or a 110v version that can supply a site welfare cabin.

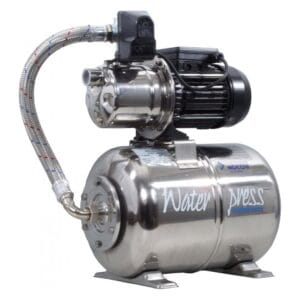

We also stock the Pentair Nocchi Multi Evo-A booster pump; send us your figures and we will confirm which unit suits. Other clean water pumps used for boosting include the Nocchi DHI multistage centrifugal pumps and the Pentair Jetinox stainless steel pumps, listed with our surface mounted pumps.

Commercial buildings and multi-storey sites

Low pressure in offices, schools, care homes and flats usually comes from height, long pipe runs or extra demand. Our guide to low water pressure in commercial buildings sets out the causes and fixes, and booster sets for multi-storey buildings covers taller blocks. For a single house, how to increase water pressure runs through the simpler checks first.

Frequently asked questions

What is a booster pump?

A booster pump raises the pressure and flow of water already in a system, usually drawn from a storage or break tank. Most switch on automatically when a tap opens and off when it closes. Our guide what is a booster pump explains the main types.

Can I connect a booster pump directly to the mains?

Under the Water Supply (Water Fittings) Regulations 1999, a pump drawing more than 12 litres per minute directly from the mains requires notification to your water supplier. This is notification, not consent. Most installations use a break tank instead, so the pump draws from the tank and never directly from the main.

Will a booster pump fix low water pressure?

Only if there is enough water to feed it. A pump cannot deliver more than the supply provides, so measure flow as well as pressure. Where incoming flow is poor, a storage or break tank builds a reserve for the pump to draw on.

What size booster pump do I need for a house?

Size the pump for the outlets that run at the same time, not the total number of taps. The Pentax PM45-A suits one outlet or a few used one at a time; two bathrooms in use together need more flow. Send us your figures and we will match a pump.

Do booster pumps need dry-run protection?

Yes. A booster pump running without water overheats and damages its seal. Some units have protection built in, such as the Presscontrol on the PM45-A, which stops the pump if the supply runs out. Others rely on a float switch in the tank, so check before you order.

Can I use a booster pump on a building site?

Yes. The Pentax PM45-A comes in a 110v version that can supply a welfare cabin from a water tank. Keep the water free of sand and grit, and prime the pump before the first start.
