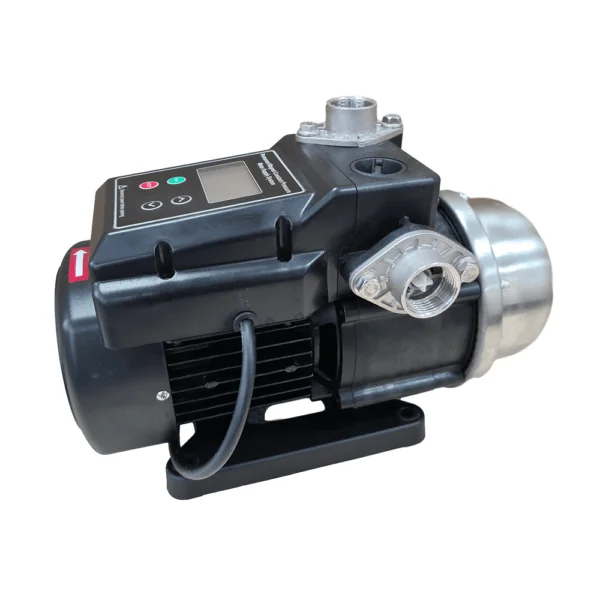

VSD Buddy APM203 Variable Speed Drive Pump 230v

Variable speed 230v booster pump for steady water pressure. Up to 80 l/min and 5 bar, built-in pressure vessel, transducer and dry run protection, factory preset with a digital display. Needs flooded suction.

£280.96 +VAT
£337.15 incl VAT

in stock

Free UK delivery
on orders over £200

Need advice?
01252 515169

SKU: 050-580 Categories: ,

Description

The VSD Buddy APM203 variable speed booster pump (code 050-580) keeps water pressure steady across a home, small commercial building or irrigation system. It delivers up to 80 litres per minute and up to 50 metres of head (5 bar) from a 0.8 kW motor on 230v.

Instead of switching on and off at full speed, it speeds up and slows down to match demand, so pressure stays even as taps open and close and it uses only the power it needs. Almost everything is set at the factory: connect it, prime it, set the pressure you want on the digital display, and it runs itself.

The pressure vessel, pressure transducer and non-return valve are all built in, so there is nothing extra to fit, and dry run protection shuts it down if the water supply fails. It has 1″ BSP ports, weighs 6.6 kg and runs quietly enough for a house. It is not self priming, so it must be installed with flooded suction, fed from a tank or supply above the pump.

Features

  • Up to 80 l/min and 50 m head (5 bar)
  • 0.8 kW motor, 230v, 4.6 A
  • Variable speed for steady pressure and lower running costs
  • Built-in pressure vessel, transducer and non-return valve
  • Dry run protection
  • Digital pressure display, factory preset
  • 1″ BSP inlet and outlet, 6.6 kg

Applications

  • Boosting mains or tank water pressure in homes and flats
  • Garden and agricultural irrigation
  • Small commercial and light industrial supplies
  • Properties with several outlets in use at once

For clean water from 0°C to 60°C. Requires flooded suction; it will not lift water from below.

VSD Buddy APM203 performance curve

Specification

ModelSupplyInlet / OutletMax Flow (l/min)Max Head (m)Motor (kW)Current (A)H x W x L (mm)KgCode
APM203 VSD230v1″ x 1″80500.84.6240 x 183 x 4046.6050-580

Additional information

Voltage

230v

Flow Rate

51 – 100 l/min

Max Head

41- 50m

Liquid Type

Clean Water
