Description

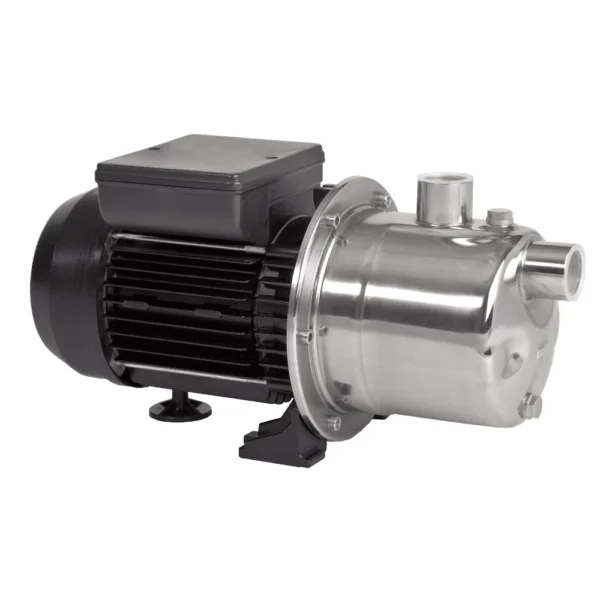

The Pentair Jetinox 60/50 M (AES code 022-266) is the mid-sized Jetinox: a 230v single-phase, self-priming stainless steel jet pump with a 0.55 kW motor drawing 4 A. Pentair gives it 46 metres of head with the outlet closed, 31 metres at 20 l/min, 18 metres at 40 l/min and 6 metres at 50 l/min. Suction and delivery are both 1″ female threads.
The 60/50 M is the usual choice for one bathroom, or a kitchen and a shower used one at a time. For a single tap the Jetinox 45/43 M is enough, and where a shower and taps run together the Jetinox 90/50 M holds 33 metres at 40 l/min. The same pump is the heart of the Superinox 60/50 booster set, if you want it supplied with a vessel and pressure switch.
Every Jetinox has an AISI 304 stainless steel pump body, a technopolymer impeller with a stainless steel shim ring, a technopolymer diffuser and Venturi nozzle, an AISI 416 stainless steel shaft and a graphite on ceramic mechanical seal. The die-cast aluminium motor is closed and externally ventilated, rated IP44 with Class F insulation, and has a thermal cutout built into the winding. It runs at 2850 rpm and is rated for continuous duty.
Features
- Self-priming jet design, up to 8 metres suction lift with a foot valve
- AISI 304 stainless steel pump body
- 0.55 kW, 230v single-phase motor, 4 A
- Thermal cutout in the motor winding
- 1″ female suction and delivery connections
- Weighs 8.2 kg
Applications
- Pressure boosting for a flat or small house from a break tank
- Pump for a home-built booster set with a pressure switch and vessel
- Garden irrigation and lifting from shallow wells
- Washing systems and fountain supply
This is a pump for clean water. It is not for dirty water, sand, sewage or water above 50°C, and the maximum operating pressure is 6 bar. It has no built-in pressure switch or dry-running protection, so it must be paired with suitable controls and never run without water. Install it under cover in a dry, frost-free place. It is not sized for several showers at once.
The Jetinox range
| Model | Supply | Motor output (kW) | Current (A) | Max head (m) | Head at 20 l/min (m) | Head at 40 l/min (m) | Max flow (l/min) | Inlet x outlet |
|---|---|---|---|---|---|---|---|---|
| Jetinox 45/43 M | 230v | 0.37 | 3 | 43 | 23 | 1 | 40 | 1″ F x 1″ F |
| Jetinox 60/50 M | 230v | 0.55 | 4 | 46 | 31 | 18 | 50 | 1″ F x 1″ F |
| Jetinox 90/50 M | 230v | 0.9 | 7 | 50 | 39 | 33 | 80+ | 1¼” M x 1″ F |
| Inox 80 | 110v | 0.59 | n/a | 45 | n/a | under 10 | 40 | 1″ x 1″ |
Jetinox figures are Pentair’s published performance at 230v; motor output is rated output (P2), not power drawn. Inox 80 figures are its rated maximum flow and head, with the head at 40 l/min read from the performance curve.
See the full Pentair Jetinox stainless steel booster pumps range for selection advice and answers to common questions.
