Description

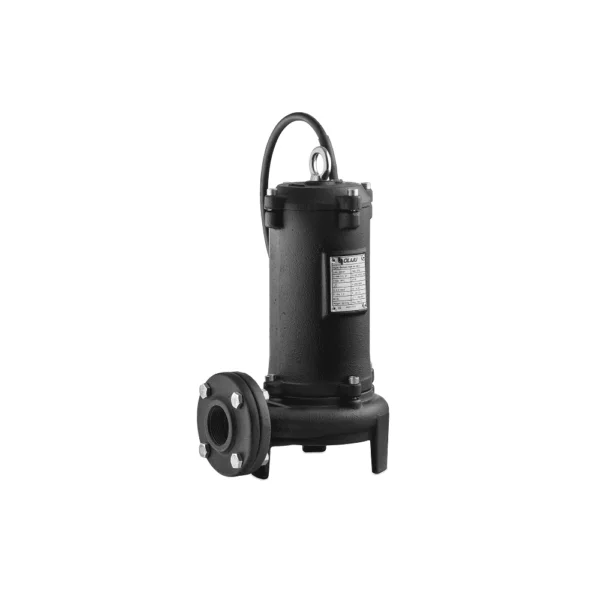

The Oliju SGR 50.220 400v (code 1200-0030) is the three-phase version of the SGR 50: a 2.2 kW sewage grinder pump with a 2″ outlet and a running current of 4.6 A. Oliju gives it a maximum head of 30 metres and a maximum flow of about 380 litres per minute, with around 21.7 metres still available at 200 litres per minute.
It is the highest-performing pump in the SGR range and the natural choice for a commercial site with three-phase power. For lower heads at 400v, the SGR 40 400v uses a 1½” outlet. On a single-phase supply, the SGR 50.220 Manual 230v gives the same head and flow.
The SGR 50 is the larger SGR body: cast iron pump body, open impeller and motor casing, a stainless steel shaft and a stainless steel cutter, with an oil-filled class F motor behind double seals, lip seals and a silicon carbide mechanical seal. It weighs 36 kg, has a front outlet for guide rail installation and comes with 20 metres of H07RN-F neoprene cable. Oliju rates it for immersion to 10 metres.
Features
- Three-phase 400v supply, 2.2 kW, 4.6 A
- Grinder system shreds soft solids and fibres, including toilet waste
- Maximum head 30 m; about 21.7 m at 200 l/min
- Maximum flow about 380 l/min
- 2″ front outlet suited to guide rail installation
- Cast iron pump body, impeller and motor casing
- 20 m H07RN-F neoprene cable
Applications
- Commercial premises, workshops and farm buildings with three-phase power
- Sewage sumps with a high or long discharge run
- Duty and standby pairs run from a three-phase control panel
The pump has no float switch and must be run from a three-phase control panel with motor protection. For sewage and dirty water carrying soft solids and fibres. Not for sand, gravel, stones or builders’ debris, which wear the cutter, and not for oils, solvents, chemicals or flammable liquids. Ask us before installing it deeper than 10 metres.
The Oliju SGR range
| Model | Supply | Operation | Outlet | Max Flow (l/min) | Max Head (m) | Head at 200 l/min (m) | Motor (kW) | Weight (kg) | Code |
|---|---|---|---|---|---|---|---|---|---|
| SGR 40.150 Manual 230v | 230v 1~ | Manual | 1½” | 275 | 21 | 8.1 | 1.5 | 26.5 | 1200-0005 |
| SGR 40.150 Automatic 230v | 230v 1~ | Automatic | 1½” | 275 | 21 | 8.1 | 1.5 | 26.5 | 1200-0010 |
| SGR 40 400v | 400v 3~ | Manual | 1½” | 275 | 21 | 8.1 | Ask us | 26.5 | 1200-0025 |
| SGR 50.220 Manual 230v | 230v 1~ | Manual | 2″ | 380 | 30 | 21.7 | 2.2 | 36 | 1200-0015 |
| SGR 50.220 Automatic 230v | 230v 1~ | Automatic | 2″ | 380 | 30 | 21.7 | 2.2 | 36 | 1200-0020 |
| SGR 50.220 400v | 400v 3~ | Manual | 2″ | 380 | 30 | 21.7 | 2.2 | 36 | 1200-0030 |
Figures are from Oliju’s 50 Hz data. See the Oliju SGR sewage grinder pump range page for help choosing between models.
