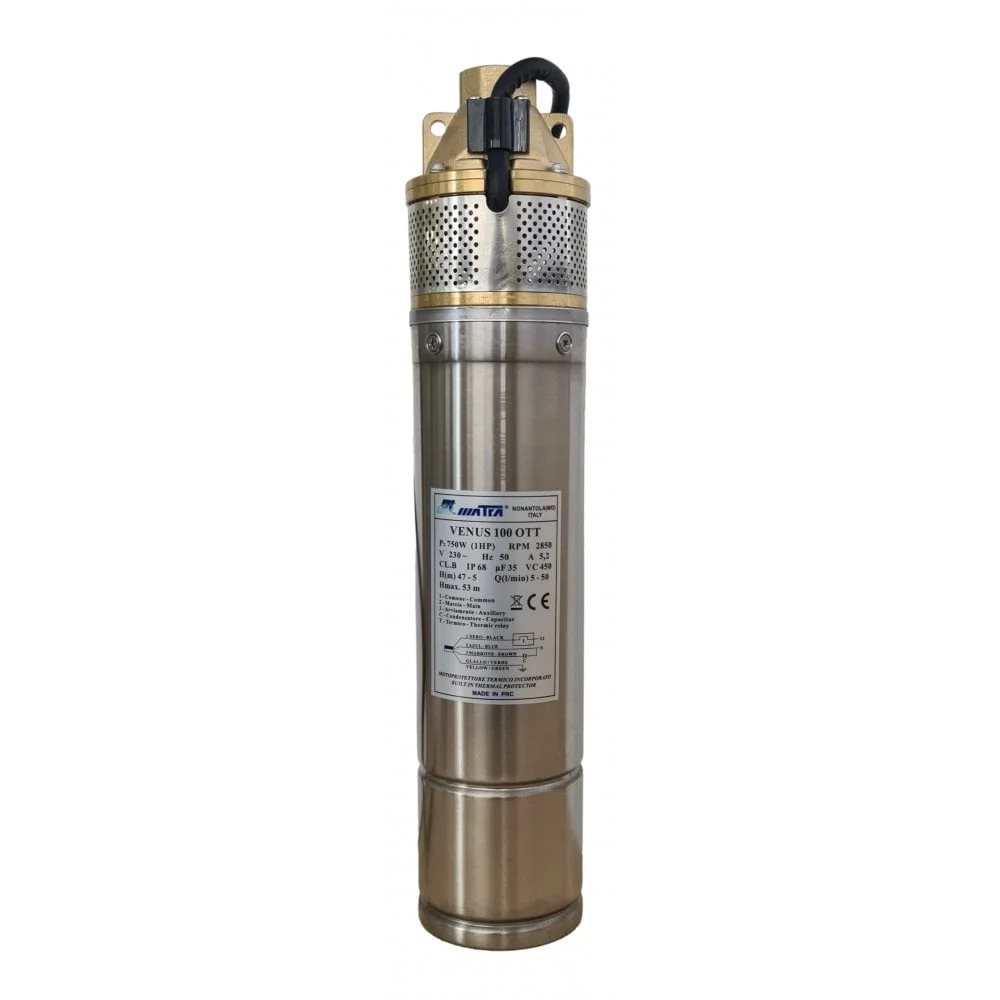

Matra Venus 100 230v Borehole Well Pump

Matra Venus 100 4-inch borehole pump with a brass peripheral impeller and 0.75 kW motor, 230v single-phase. Gives 47 m of head at 5 l/min and 37 m at 20 l/min, up to 50 l/min, through a 1″ outlet. Supplied with a control box; for clean water only.

£248.53 +VAT
£298.24 incl VAT

in stock

Free UK delivery
on orders over £200

Need advice?
01252 515169

SKU: 022-790 Categories: ,

Description

The Matra Venus 100 (code 022-790) is a 4-inch submersible borehole pump for clean water, with a single brass peripheral impeller driven by a 0.75 kW (1 HP) motor. Matra’s figures give 47 metres of head at 5 litres per minute, 37 metres at 20 l/min and 25 metres at 30 l/min, falling to 5 metres at its 50 l/min maximum. It runs on 230v single-phase mains and delivers through a 1″ G outlet.

The Venus 100 is the lower-pressure model in the range and suits garden irrigation, a modest lift from a borehole or well, or topping up a storage tank. If your total head is more than about 30 metres at the flow you need, or the water level sits deep in the bore, the Matra Venus 180 uses the same 98 mm body with a 1.33 kW motor and gives 69 metres at 20 l/min.

Both Venus models share the same construction. The pump body and the single peripheral impeller are brass, the outer shell and shaft are AISI 304 stainless steel, and the shaft is sealed by a graphite/ceramic mechanical seal. The motor is oil-cooled, runs at 2900 rpm and has Class B insulation. A non-return valve is built into the pump, and the outlet is a 1″ G thread. Each pump is supplied with a control box that houses the capacitor and thermal overload protection for the single-phase motor.

The Venus 100 is 460 mm long and 98 mm in diameter, and weighs 15 kg.

Features

  • 47 m head at 5 l/min, 37 m at 20 l/min, 25 m at 30 l/min
  • Flow up to 50 l/min
  • 0.75 kW (1 HP) motor, 230v single-phase
  • Single brass peripheral impeller for high pressure at low flow
  • Built-in non-return valve
  • Control box with capacitor and thermal overload protection
  • 98 mm diameter for 4-inch boreholes and wells

Applications

  • Garden irrigation from a borehole, well or tank
  • Filling a pressure vessel for a small domestic supply
  • Transferring clean water to a storage tank

The Venus 100 is for clean water only, so it is not suitable for sandy or silty bores, drainage or dirty water. Its 98 mm body leaves very little clearance in a 4-inch bore, so measure your casing first; for a 3-inch bore, see the Pentax 3S 3-inch borehole pumps. At 40 l/min it gives only 15 metres of head, so if you need more volume, call us and we can suggest a pump to suit.

Matra Venus 100 and 180 borehole pump performance curves, head against flow

The Matra Venus range

ModelMotor P2 (kW / HP)Head at 5 l/min (m)Head at 20 l/min (m)Head at 30 l/min (m)Head at 40 l/min (m)Head at 50 l/min (m)Length x Dia (mm)KgCode
Matra Venus 1000.75 / 1.0473725155460 x 9815022-790
Matra Venus 1801.33 / 1.88769482810500 x 9818022-792

Both models are 230v single-phase with a 1″ G outlet, for clean water only. See the Matra Venus borehole pumps range page for help choosing a model and answers to common questions.

Additional information

Voltage

230v

Flow Rate

0 – 50 l/min

Max Head

41- 50m

Material

Brass

Liquid Type

Clean Water
