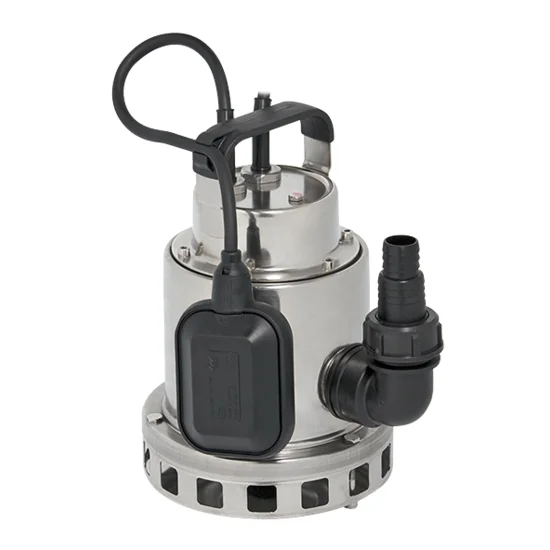

Pentair Jung Pumpen Omnia 80/5 Automatic 230v Pump

Automatic stainless steel vortex pump with integral float switch, for dirty water with soft solids up to 20 mm. Rated 80 l/min and 5 m head, 0.2 kW, 230v, 1¼” outlet. Starts at about 250 mm and stops at about 100 mm.

£334.09 +VAT
£400.91 incl VAT

in stock

Free UK delivery
on orders over £200

Need advice?
01252 515169

Description

The Pentair Jung Pumpen Omnia 80/5 Automatic 230v (code 555-033) is the float-switched version of the smallest Omnia stainless steel vortex pump. It is rated at 80 litres per minute and 5 metres of head from a 0.2 kW motor (0.3 kW input, 1.4 A), with a 1¼” outlet, on 230v single-phase mains.

The built-in float switch starts the pump when the water reaches about 250 mm and stops it at about 100 mm, according to Jung Pumpen, so it can look after a small sump on its own. Check your pit is deep and wide enough for the float to rise freely to that start level. The Omnia 80/5 Manual 230v is the same pump without the float, and the Omnia 160/7 Automatic 230v is the next size up.

Like every pump in the range, it has a pump housing, motor housing and vortex impeller in AISI 304 stainless steel, with an AISI 416 stainless steel shaft, self-lubricating ball bearings and an oil chamber. The motor is cooled by a heat exchange chamber, so the pump can run for long periods without being fully submerged, down to a depth of 7 metres. It comes with 10 metres of H07RN-F cable and a 32 mm hose connector for the 1¼” outlet. The motor runs at 2850 rpm, is IP68 rated with Class F insulation, and has thermal protection built into the winding that resets automatically.

Features

  • Integral float switch: starts at about 250 mm, stops at about 100 mm
  • Vortex impeller passes soft solids up to 20 mm
  • AISI 304 stainless steel pump body, motor housing and impeller
  • 0.2 kW motor, 230v, 1.4 A, thermal protection
  • Rated 80 l/min and 5 m; about 53 l/min at 2 m head
  • 10 m H07RN-F cable and 32 mm hose connector
  • 264 mm tall, 6.1 kg

Applications

  • Unattended rainwater and drainage sumps
  • Light wells and small cellar pits
  • Collecting chambers for surface water
  • Overflow chambers for ponds and water features

This is a light-duty pump: at 4 metres of lift it delivers only about 12 l/min, and Jung Pumpen limits it to 30 starts an hour. For a busy sump or a high discharge point, choose the 160/7 or 200/8 automatic.

For rainwater, drain water and waste water with soft solids up to 20 mm, at up to 40°C. Not for raw sewage or toilet waste (use the Priox sewage pumps), stones, rag or fibrous material, or flammable or dangerous liquids. The pump must never run dry.

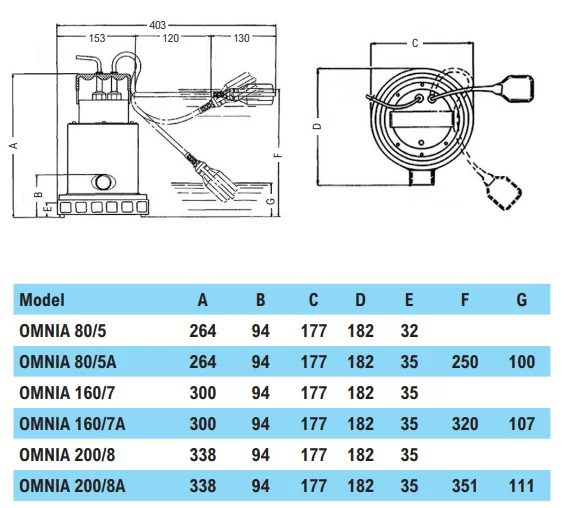

Pentair Jung Omnia stainless steel vortex pump dimensions drawing

The Omnia range

ModelVersionsRated Flow (l/min)Rated Head (m)Flow at 2 m (l/min)Flow at 4 m (l/min)Motor P1 / P2 (kW)Current 230v (A)Height (mm)Kg
Omnia 80/5230v or 110v, manual or automatic80553120.3 / 0.21.42646.1
Omnia 160/7230v, manual or automatic1507117700.5 / 0.372.53007.0
Omnia 200/8230v or 110v, manual or automatic20081571030.75 / 0.53.23388.5

Duty flows are converted from Jung Pumpen’s published performance data, and current figures are for the 230v versions. Every Omnia has a 1¼” outlet, 20 mm free passage and a 177 x 182 mm footprint. See the Pentair Jung Omnia stainless steel vortex pump range for help choosing and answers to common questions.
