Description
The Swim Buddy 19 230v swimming pool pump (code 014-204) is the largest pump in the Swim Buddy range. It moves up to 315 litres per minute and reaches a maximum head of 15 metres from a 0.6 kW motor, through 1½” / 50 mm inlet and outlet connections, running on standard 230v mains and drawing 4.6 A.
Choose it for a larger home pool, a longer pipe run, or a circuit with a heater or other equipment that adds resistance. Its higher head means it keeps more of its flow against that resistance than the Swim Buddy 15 230v (250 l/min, 11 m), which shares the same connections and footprint. If you need more flow than the Swim Buddy 19, a three-phase pump, or a pump mounted more than 1.5 metres above the water, look at the Pentair Swimmey swimming pool pumps.
All three Swim Buddy pumps share the same construction: a polypropylene body and diffuser, a Noryl impeller (an engineering plastic widely used in pool pumps), a stainless steel shaft and a carbon mechanical seal. A strainer basket under an inspection lid catches leaves and debris before they reach the impeller. The pumps handle water up to 50°C and have a maximum suction lift of 1.5 metres.
Features
- Up to 315 l/min (about 19 m³/h) and 15 m maximum head
- 0.6 kW motor, 230v single-phase supply, 4.6 A
- Highest head in the Swim Buddy range
- Strainer basket with inspection lid
- Polypropylene body, Noryl impeller, stainless steel shaft
- Carbon mechanical seal
- 1½” / 50 mm inlet and outlet
- Maximum suction lift 1.5 m, water up to 50°C
Applications
- Larger domestic swimming pools
- Longer pipe runs between pump and pool
- Circuits with a heater or additional filtration equipment
- Pump houses and plant rooms on a 230v supply
For clean, treated swimming pool water only. Not designed for drainage, flood water, dirty water or solids, and must never run dry: fill the pump body with water before starting it. Not available in three-phase.
The Swim Buddy range

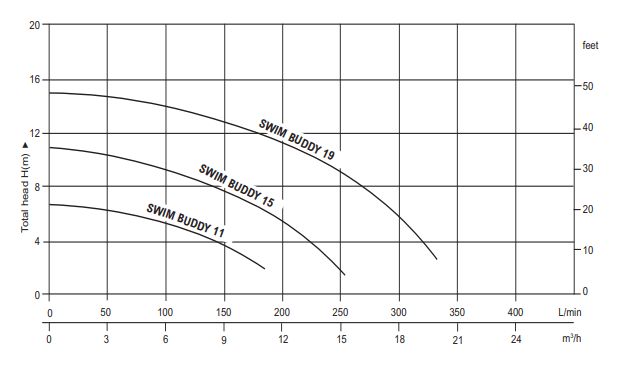

| Model | Voltage | Inlet / Outlet | Max Flow (l/min) | Max Head (m) | Current (A) | H x W x L (mm) | Kg | Code |
|---|---|---|---|---|---|---|---|---|
| Swim Buddy 11 | 230v | 1½” / 50 mm | 180 | 7 | 1.6 | 265 x 220 x 502 | 6 | 014-200 |
| Swim Buddy 15 | 230v | 1½” / 50 mm | 250 | 11 | 3.2 | 265 x 220 x 502 | 7 | 014-202 |
| Swim Buddy 19 | 230v | 1½” / 50 mm | 315 | 15 | 4.6 | 265 x 220 x 502 | 9 | 014-204 |
Flow and head are maximum figures. See the Swim Buddy swimming pool pumps range page for help choosing a size, a comparison with the Pentair Swimmey range and answers to common questions.
