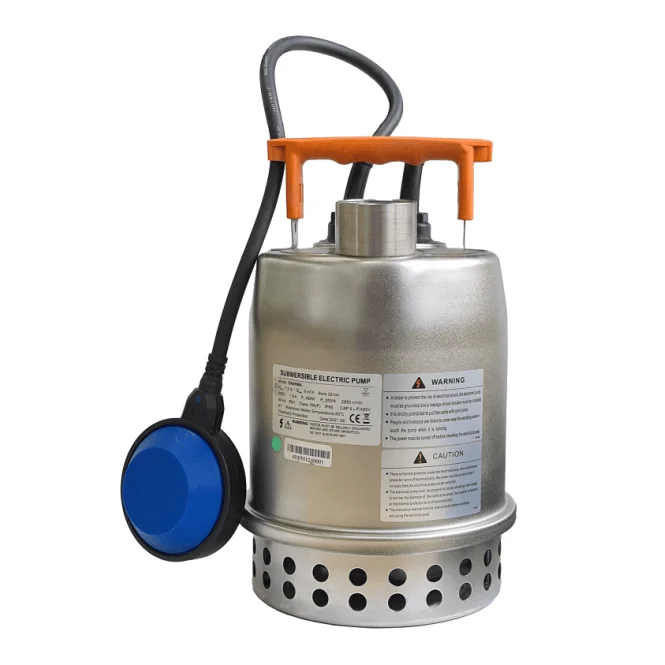

Oreal CK Stainless Steel Sump Pump CK150M

Description

The Oreal CK150M is the most powerful model in the CK 230v stainless steel range. Rated at 1.1 kW, it delivers up to 300 litres per minute at a maximum head of 18 metres through a 1 1/2-inch (38mm) outlet. It is designed for commercial and light-industrial sump drainage duties where flow rate, lift height, or the length of the discharge run exceeds the capacity of the smaller CK models.

All water-contact components are constructed from AISI304 stainless steel, covering both the pump body and impeller. Twin mechanical seals in a lubricated chamber provide long-term protection for the motor. The pump handles solids up to 10mm and operates in liquid temperatures up to 50°C. A 10-metre power cable and hose tail are included as standard. The CK150M measures 375mm high by 211mm wide and weighs 13 kg.

Like all models in the CK range, the CK150M is a manual pump. In sump installations requiring automatic level control, wire the pump through a separate float switch. It is suitable for clean water, black water, and dirty water applications, as well as general circulation duties. Maximum submersion depth is 5 metres.

Features

• Stainless steel AISI304 pump body and impeller
• Twin mechanical seals in lubricated chamber
• 1 1/2-inch (38mm) outlet with hose tail included
• 10m power cable supplied
• Maximum liquid temperature: 50°C
• Maximum solids passage: 10mm
• Maximum submersion depth: 5m

Applications

• Commercial and light-industrial sump drainage
• Drainage sumps with long discharge runs or high lift
• Plant rooms, car parks, and below-ground service areas
• Clean water drainage
• Black water drainage
• Dirty water drainage
• Circulation duties

Models in this range:

• CK45M(A)
• CK55M(A)
• CK100M(A)
• CK150M(A)

Maximum submersion depth: 5 mtr.
Maximum particle size: 10mm.

Specifications
