Description

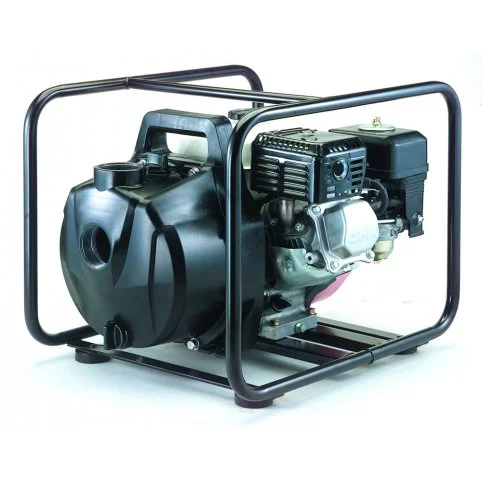

The Koshin PGH-50 petrol thermoplastic pump (code 050-024) is a 2″ engine pump for liquids that would corrode a cast iron pump. It moves up to 560 litres per minute, reaches a maximum head of 26 metres and lifts from up to 8 metres below, driven by a Honda GX120 petrol engine.
The pump end is moulded thermoplastic with EPDM O-rings and a carbon ceramic mechanical seal, and every nut, bolt and washer is stainless steel. That suits salt water, fuel oil and mild chemicals in marine, agricultural and industrial work, where a standard pump would rust or pit. It passes solids up to 5 mm.
The Honda GX120 engine has oil alert, which stops it if the oil runs low, and a 2.5 litre tank that gives about 2.5 hours of running. It has 2″ BSP female ports, comes with two plastic hose nipples, and weighs 22 kg. For high pressure clean water duties, see the Koshin SERH range.
Features
- Up to 560 l/min and 26 m head
- Self priming from up to 8 m
- Honda GX120 petrol engine with oil alert
- Thermoplastic pump end, EPDM O-rings, carbon ceramic seal
- Stainless steel fixings throughout
- 2″ BSP female inlet and outlet, solids up to 5 mm
- About 2.5 hours from a 2.5 litre tank, 22 kg
Applications
- Sea water and salt water transfer
- Marine and boatyard use
- Agricultural liquids and mild chemicals
- Fuel oil transfer
Not suitable for abrasive liquids, strong acids or solvents. Check compatibility with us before pumping chemicals.
Specification
| Model | Engine | Oil alert | Inlet / Outlet | Max Flow (l/min) | Max Head (m) | Solids (mm) | H x W x L (mm) | Kg | Code |
|---|---|---|---|---|---|---|---|---|---|
| PGH-50 | Honda GX120 | Yes | 2″ x 2″ | 560 | 26 | 5 | 476 x 402 x 506 | 22 | 050-024 |
