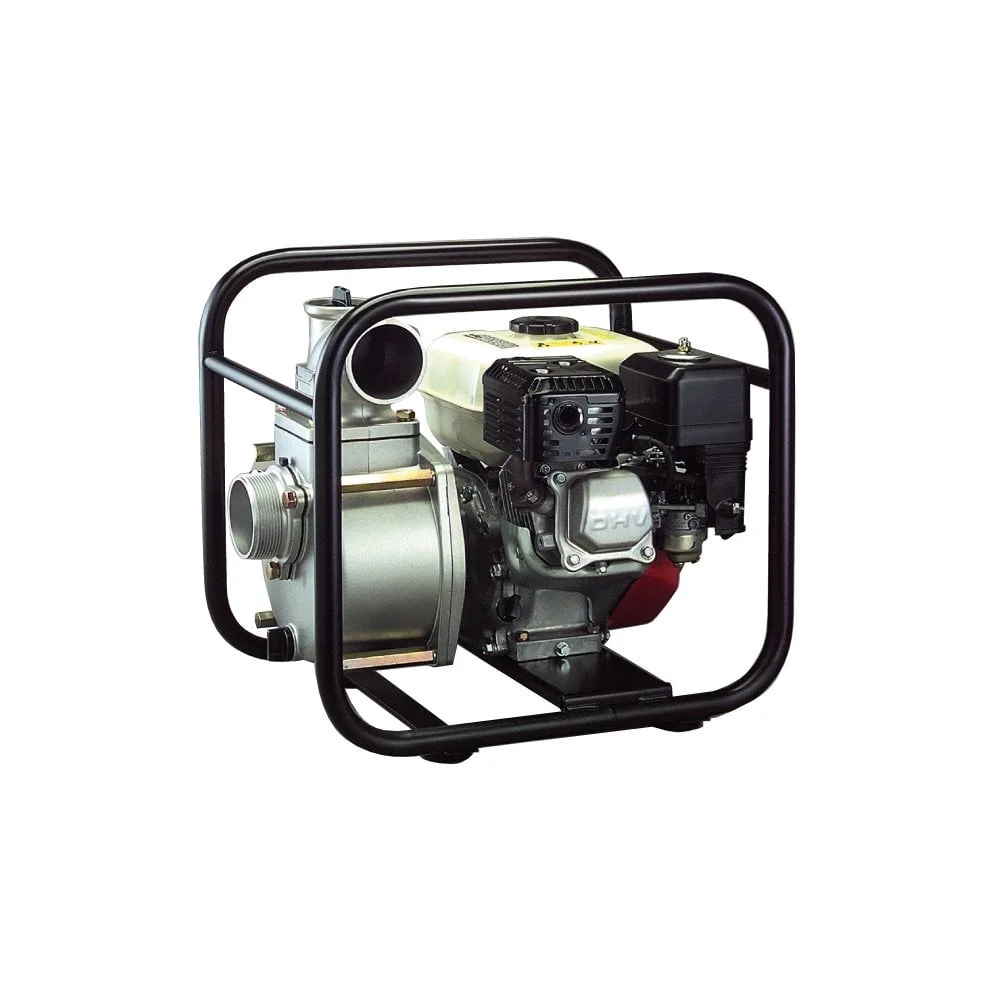

Koshin STH-80X Semi-Trash Honda Petrol Engine Pump

Koshin STH-80X 3″ semi-trash pump with a Honda GX160 petrol engine for high-volume dirty water. Up to 900 l/min and 26 m head, solids up to 9 mm, silicon carbide seal, 29 kg.

£630.10 +VAT
£756.12 incl VAT

in stock

Free UK delivery
on orders over £200

Need advice?
01252 515169

Description

The Koshin STH-80X (code 050-048) is a 3″ semi-trash petrol pump powered by a Honda GX160 four-stroke engine. Koshin rates it at up to 900 litres per minute and 26 metres of head, with a maximum suction lift of 8 metres, and it passes solids up to 9 mm. It is the larger of the two STH pumps, built for shifting big volumes of dirty water from excavations, flooded land and settling ponds.

For smaller jobs where a lighter pump is easier to handle, the 2″ Koshin STH-50X weighs 23 kg and pumps up to 600 l/min. If the water carries stones and debris too large for a 9 mm rating, look at the Koshin KTH compact trash pumps.

Koshin casts the impeller and casing in spheroidal graphite iron and fits a silicon carbide (SiC) mechanical seal, which Koshin rates as four to five times more durable than a standard carbon and ceramic seal. A long bolt assembly holds the pump body together, and the impeller can be removed without special tools, making it straightforward to clear a blockage or change wear parts. The Honda GX160 runs on unleaded petrol from a 3.1 litre tank, giving about two hours of running, and starts with a recoil starter. The pump has 3″ BSP male threaded connections, weighs 29 kg and measures 525 x 389 x 473 mm (L x W x H) inside its tubular frame.

Features

  • Honda GX160 four-stroke petrol engine
  • Up to 900 l/min and 26 m head
  • Handles solids up to 9 mm
  • Maximum suction lift of 8 m
  • Spheroidal graphite iron impeller and casing
  • Silicon carbide mechanical seal
  • Long bolt assembly for easy servicing
  • 3″ BSP male connections; 29 kg net

Applications

  • Dewatering larger excavations, basements and foundations
  • Clearing standing floodwater from fields, yards and car parks
  • Draining ponds, lagoons and settling tanks
  • High-volume dirty water transfer on construction and agricultural sites

The STH is a semi-trash pump for sandy and muddy water. It is not suitable for sewage, thick slurry, rags or debris larger than its solids rating: for bigger solids, see the Koshin KTH compact trash pumps, and for clean water work, the Koshin SEH range. Fill the casing with water before starting and never run the pump dry. Do not use it for petrol, oil or other flammable liquids. Koshin supplies the pump with a strainer, two hose couplings, three hose bands, an engine tool set and a spanner; hoses are not included.

Performance curves for the Koshin STH-50X and STH-80X semi-trash pumps alongside the SEH clear water range

The Koshin STH range

ModelConnectionsEngineMax flow (l/min)Max head (m)Max solids (mm)Fuel tank (L)Run time per tankNet weight (kg)
STH-50X2″Honda GX1206002982.0About 2 hours23
STH-80X3″Honda GX1609002693.1About 2 hours29

Figures are from Koshin’s catalogue. Both models have a maximum suction lift of 8 m. See the Koshin STH semi-trash Honda petrol pumps range page for help choosing and answers to common questions.

Additional information

Flow Rate

851 – 900 l/min

Max Head

21 – 30m

Liquid Type

Clean Water, Dirty Water
