Description

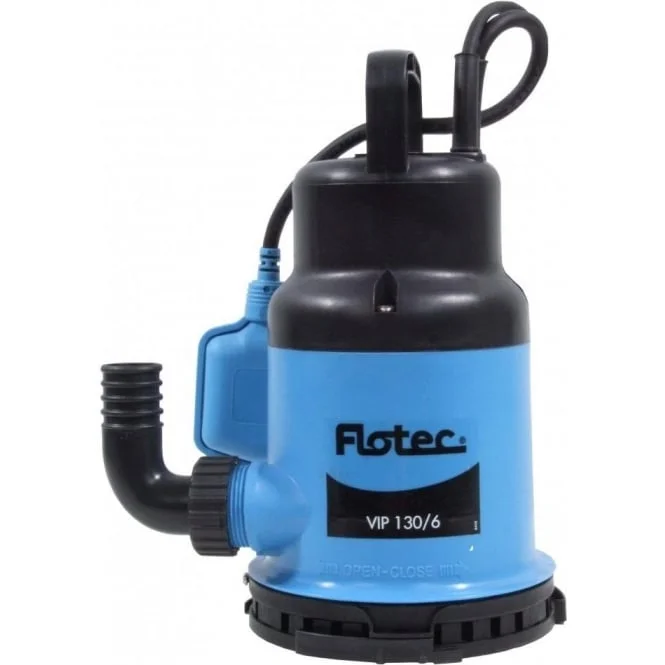

The Pentair Flotec VIP 130/6 Automatic (code 020-072) is a 230v submersible drainage pump with a float switch, moving up to 130 litres per minute and lifting water up to 6 metres. It has a 320 W power input and a 1¼” male outlet.
The tethered float switch starts the pump as the water rises and stops it at about 150 mm, so it can be left in a sump to empty it whenever it fills. It is the same pump as the VIP 130/6 Manual, which has no float and pumps lower but needs someone to switch it off. If water comes in faster or has further to rise, step up to the VIP 180/7 Automatic.
The pump body is polypropylene, which keeps the weight down and will not rust, and the motor shaft has a ceramic sleeve where it wears. The pump draws 230v single-phase power, comes with 10 metres of cable, and can be submerged to a depth of 7 metres. A carry handle on top lets you lower it into a pit or lift it out, and the 1¼” male outlet takes the hose connector supplied.
Features
- Up to 130 l/min and 6 metres maximum head
- Float switch for automatic operation
- 320 W power input, 230v single-phase
- Passes particles up to 6 mm
- Polypropylene pump body and ceramic sleeved motor shaft
- 1¼” male outlet with hose connector supplied
- 10 metres of cable
Applications
- Cellar and basement sumps
- Rainwater and infiltration water drainage
- Domestic waste water from utility and plant rooms
- Keeping low areas and pits clear after heavy rain
This is a drainage pump for clean to moderately dirty water with particles up to 6 mm. It is not for sewage, sludge or water carrying grit, leaves or rag, and Pentair states it must never run dry. It is also not suitable for sea water, swimming pools, or flammable, corrosive or explosive liquids, and the liquid must not exceed 35°C. Allow no more than 30 starts an hour. For dirty water with larger solids, choose the VIPVORT 180/6.
The Flotec VIP and VIPVORT Range
| Model | Code | Operation | Max Flow (l/min) | Max Head (m) | Power Input (W) | Max Solids (mm) |
|---|---|---|---|---|---|---|
| VIP 130/6 Manual | 020-070 | Manual | 130 | 6 | 320 | 6 |
| VIP 130/6 Automatic | 020-072 | Float switch | 130 | 6 | 320 | 6 |
| VIP 180/7 Automatic | 020-076 | Float switch | 180 | 7 | 370 | 6 |
| VIPVORT 180/6 Automatic | 020-086 | Float switch | 180 | 6 | 480 | Ask us |
See the full Pentair Flotec VIP and VIPVORT drainage pump range to compare every model.
