Description

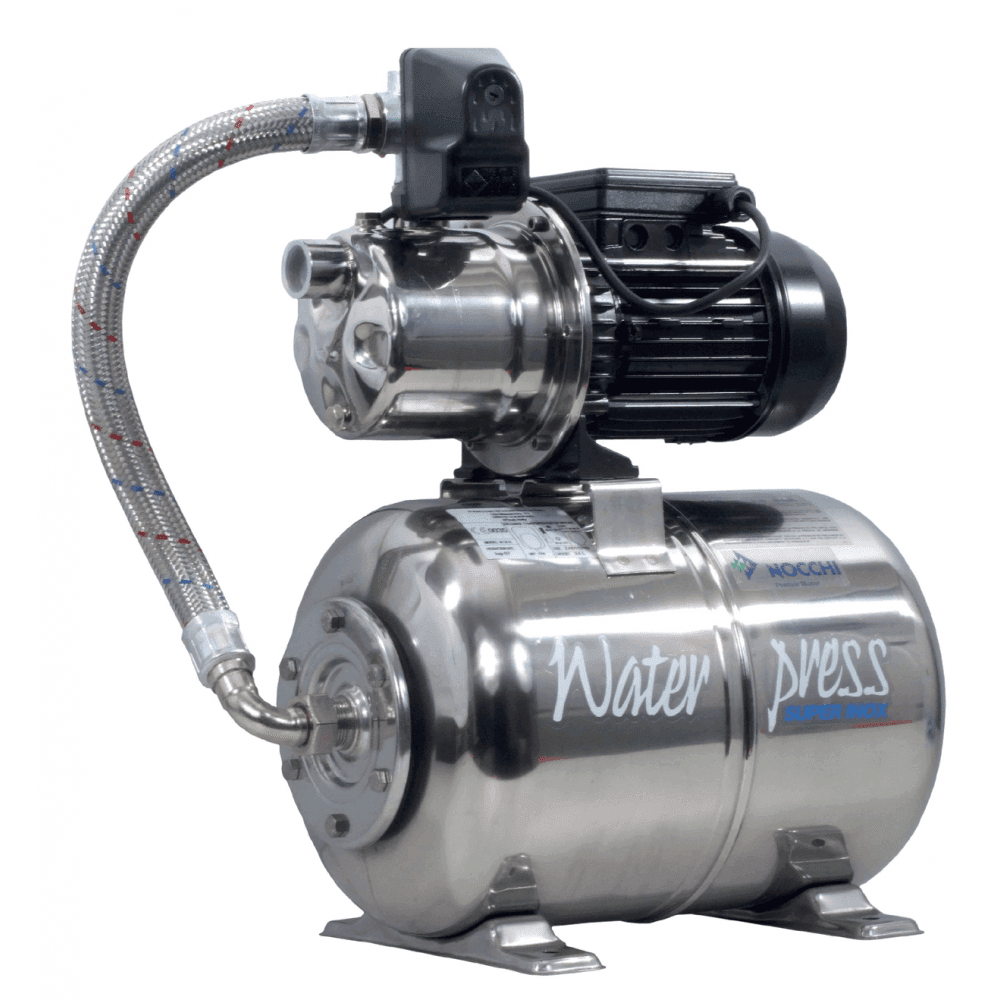

Tackle inadequate water pressure with the Superinox 60/50 automatic booster system – a complete plug-and-play solution engineered for reliable pressure enhancement in properties where mains supply falls short.
This compact yet powerful booster set features a robust Jet Inox self-priming pump with a corrosion-resistant stainless steel body and durable technopolymer internals (impeller, diffuser and venturi). The integrated 25-litre stainless steel pressure vessel works intelligently with the factory-calibrated pressure switch to maintain consistent water delivery whilst minimising pump cycling and energy consumption.
When you open a tap or outlet, the system springs into action automatically, delivering up to 55 litres per minute with a maximum head of 45 metres. The pressure vessel’s stored water reserves mean the pump won’t activate for minor water demands, significantly extending pump life and reducing electricity costs. When the tap closes, the system automatically shuts down – it’s completely hands-free operation.
Designed for cold, clean water applications up to 50°C, the 0.8kW motor operates on standard 230V 50Hz supply. With a maximum suction lift of 7 metres and 1″ BSP female connections on both inlet and outlet, installation is straightforward via a break tank configuration. The entire unit measures just 550mm (H) × 280mm (W) × 530mm (L) and weighs only 11kg, making it ideal for locations where space is at a premium.
Supplied as a complete, pre-assembled system ready for immediate installation. Essential maintenance note: never allow the pump to run dry as this will cause damage.
Technical Specifications:
- Maximum flow rate: 55 litres per minute
- Maximum head: 45 metres
- Maximum suction head: 7 metres
- Power: 0.8kW, 230V 50Hz
- Pressure vessel: 25 litres (stainless steel)
- Accumulator vessel: Mild steel
- Connections: 1″ BSP female inlet and outlet
- Pump body: Stainless steel
- Impeller/diffuser/venturi: Technopolymer
- Dimensions: 550mm × 280mm × 530mm
- Weight: 11kg
- Suitable for clean water only (max 50°C)
| MODEL | VOLT | TANK SIZE | INLET/ OUTLET | LM/HM | Kw | AMP | HxWxLmm | Kg | CODE |
| SUPERINOX 60/50 | 230v | 25L | 1″ X 1″ | 55/45 | 0.55 | 4 | 550 X 280 X 530 | 11 | 022-462 |
| SUPERINOX 90/50 | 230v | 25L | 1½” X 1″ | 80/45 | 0.90 | 7 | 580 X 280 X 530 | 12 | 022-464 |
| W/P MULTI EVO-A 5-50M | 230v | 25L | 1″ X 1″ | 100/55 | 0.95 | 6.2 | 550 X 260 X 520 | 13 | 022-495 |
| W/P MULTI EVO-A 5-50M+ | 230v | 60L | 1″ X 1″ | 100/55 | 0.95 | 6.2 | 640 X 370 X 640 | 23 | 022-500 |
| INOX 80 AUTO | 110v | 25L | 1″ X 1″ | 40/45 | 0.59 | 9 | 580 X 280 X 530 | 12 | 022-302 |
